DTT GSM2VOIP 32M32S: New GSM-VoIP (PRI) 32 channel gateway 1U' box
Hot offer. The duration of action is limited
Other photos
|
Main characteristics
|
|||||||||||||||||||||||||||||||||||||||||||||||||
Introduction to new GSM2VOIP 32 channel 1U' gateway DTT
Corporate and Enterprise are recognizing the need for VoIP as the cost-effective alternative to the wide spread ISDN networks to protect their existing investment of both IP and ISDN products.
The DTT 32ch 2E1/VoIP is a 19” rack compatible, dedicated gateway offering high-value communication experience, a simple, flexible and cost-effective solution for multi-location branch office communication.

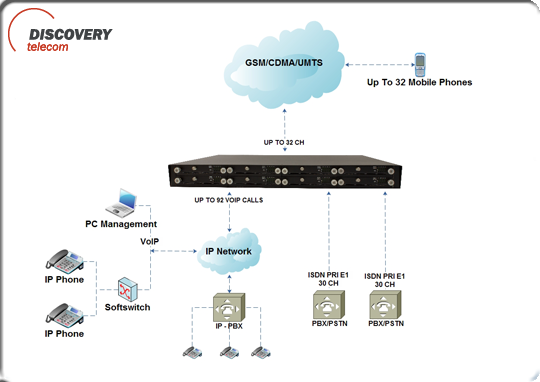

The gateway connects to an existing PBX system using VoIP, E1 or PRI Signalling. Transferring of 32 simultaneous calls VoIP to GSM and ISDN to GSM
60 simultaneous calls from ISDN (EDSS1) to VoIP (SIP), VoIP to ISDN
Innovation and value at its best
Following are the advantages of the VoIP GSM / UMTS unit
The DTT VoIP Gateway is used widely throughout continents Asia, America, Africa, Europe, LATAM with IP-PBX exchanges such as:
Following are the advantages of the VoIP GSM / UMTS unit
- Unit Size 24ch 1U and 32ch 3U
- Easy to connect
- Flexibility, stand alone gateway or use in sim server system
- Can work with external 192 sim server 1U or 256 sim server 3U
- Advanced Human behavior, innovative features such as sim profiling, grouping, test call, test sms and more….
- SIP/H323 interface
- Bulk sms server, till 500 sms calls per port with 1 click, via email server i.e. Microsoft outlook (optional)
- CDR, via Access, Xml, CSV
- Supports most IP-PBX exchanges
- Cost affordable
The DTT VoIP Gateway is used widely throughout continents Asia, America, Africa, Europe, LATAM with IP-PBX exchanges such as:
- NEC, Alcatel, Siemens, Samsung, ICT, Davos44.net, T4xx, Aastra, MX one, And more…
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| API for DTT VOIP-GSM ver. 7.2B10 | 10-15-2014 | Software (zip) | 8.70 MB |  download |
| API for DTT VOIP-GSM gateways (7.1B47_22) | 10-15-2014 | Software (rar) | 8.95 MB | download |
| USB Driver for DTT gateways | 06-08-2013 | Driver (zip) | 1.19 MB | download |
| User manual for DTT VOIP-GSM 8-16-24 gateways | 08-01-2018 | Documentation (pdf) | 1.55 MB | download |
| Leaflet for DTT VOIP-GSM 16M64S gateway | 06-08-2013 | Documentation (pdf) | 0.87 MB | download |
| Windows update for DTT VOIP2GSM gateways | 06-08-2013 | Driver (rar) | 2.65 MB | download |
| IMEI changing in DTT GSM VoIP gateways | 06-08-2013 | Documentation (pdf) | 1.05 MB | download |
| Utilities for DTT VOIP-GSM gateways | 06-08-2013 | Software (rar) | 1.69 MB | download |
To access this product file, get partner STE status
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| API for DTT VOIP-GSM ver. 7.2B10 | 10-15-2014 | Software (zip) | 8.70 MB | download |
| API for DTT VOIP-GSM gateways (7.1B47_22) | 10-15-2014 | Software (rar) | 8.95 MB | download |
| USB Driver for DTT gateways | 06-08-2013 | Driver (zip) | 1.19 MB | download |
| User manual for DTT VOIP-GSM 8-16-24 gateways | 08-01-2018 | Documentation (pdf) | 1.55 MB | download |
| Leaflet for DTT VOIP-GSM 16M64S gateway | 06-08-2013 | Documentation (pdf) | 0.87 MB | download |
| Windows update for DTT VOIP2GSM gateways | 06-08-2013 | Driver (rar) | 2.65 MB | download |
| IMEI changing in DTT GSM VoIP gateways | 06-08-2013 | Documentation (pdf) | 1.05 MB | download |
| Utilities for DTT VOIP-GSM gateways | 06-08-2013 | Software (rar) | 1.69 MB | download |
To access this product file, get partner STE status
VoIP Parameters |
|
GSM Parameters |
| Voice channels
92 Simultaneous |
| GSM channels
32 Channels |
| Codecs
G.711 PCMA/U , G.729A/B , G.723, G.726 ,Tone relay |
| Network types
850 / 900 / 1800 / 1900 MHz (quad-band) |
| Signaling
SIP – RFC 3261/H323 |
| GSM engine
Wavecom |
| Echo cancellation
G.168-2002128ms |
| Transmitter power
+33dBm(2W) 850/900MHz,+30dBm(1W) 1800/1900M |
| SIP account
Management with Authentication |
| SIM card
1 SIM per channel, Small plug-in, 3V |
| SIP Server
Up to 32 SIP clients |
| Antenna connector
SMA (female), Impedance 50 Ω |
Interfaces |
|
Administration |
|
Remote Control Ethernet 10/100/1000 RJ-45 |
| User Management program via LAN interface |
| Local Control
USB COM port |
| Includes version update capabilities for firmware or management Software |
UMTS Parameters |
|
CDMA Parameters |
| UMTS channels
32 Channels |
| CDMA channels
32 Channels |
| Network types
UMTS 2100MHz, GSM 850 / 900 / 1800 / 1900 |
| Network types
800/1900 MHz |
| UMTS engine
SIMCom |
| CDMA engine
Wavecom, AnyDATA |
| USIM
1 USIM per channel, Small plug-in, 3V |
| R-UIM Card
1 R-UIM per channel, Small Plug in, 3V |
| Antenna connector
SMA (female), Impedance 50 Ω |
| Antenna connector
SMA (female), Impedance 50 Ω |
Main Power
|
|
Other |
| Power Supply
100 - 240V AC, 50 - 60MHz |
| Dimensions
Metric: 420 x 360 x 45 mm |
| Power Input
Max - 230VA |
| Weight
4.5 kg (9.92 lbs.) |
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| API for DTT VOIP-GSM ver. 7.2B10 | 10-15-2014 | Software (zip) | 8.70 MB | download |
| API for DTT VOIP-GSM gateways (7.1B47_22) | 10-15-2014 | Software (rar) | 8.95 MB | download |
| USB Driver for DTT gateways | 06-08-2013 | Driver (zip) | 1.19 MB | download |
| User manual for DTT VOIP-GSM 8-16-24 gateways | 08-01-2018 | Documentation (pdf) | 1.55 MB | download |
| Leaflet for DTT VOIP-GSM 16M64S gateway | 06-08-2013 | Documentation (pdf) | 0.87 MB | download |
| Windows update for DTT VOIP2GSM gateways | 06-08-2013 | Driver (rar) | 2.65 MB | download |
| IMEI changing in DTT GSM VoIP gateways | 06-08-2013 | Documentation (pdf) | 1.05 MB | download |
| Utilities for DTT VOIP-GSM gateways | 06-08-2013 | Software (rar) | 1.69 MB | download |
To access this product file, get partner STE status
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| API for DTT VOIP-GSM ver. 7.2B10 | 10-15-2014 | Software (zip) | 8.70 MB | download |
| API for DTT VOIP-GSM gateways (7.1B47_22) | 10-15-2014 | Software (rar) | 8.95 MB | download |
| USB Driver for DTT gateways | 06-08-2013 | Driver (zip) | 1.19 MB | download |
| User manual for DTT VOIP-GSM 8-16-24 gateways | 08-01-2018 | Documentation (pdf) | 1.55 MB | download |
| Leaflet for DTT VOIP-GSM 16M64S gateway | 06-08-2013 | Documentation (pdf) | 0.87 MB | download |
| Windows update for DTT VOIP2GSM gateways | 06-08-2013 | Driver (rar) | 2.65 MB | download |
| IMEI changing in DTT GSM VoIP gateways | 06-08-2013 | Documentation (pdf) | 1.05 MB | download |
| Utilities for DTT VOIP-GSM gateways | 06-08-2013 | Software (rar) | 1.69 MB | download |
To access this product file, get partner STE status
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| API for DTT VOIP-GSM ver. 7.2B10 | 10-15-2014 | Software (zip) | 8.70 MB | download |
| API for DTT VOIP-GSM gateways (7.1B47_22) | 10-15-2014 | Software (rar) | 8.95 MB | download |
| USB Driver for DTT gateways | 06-08-2013 | Driver (zip) | 1.19 MB | download |
| User manual for DTT VOIP-GSM 8-16-24 gateways | 08-01-2018 | Documentation (pdf) | 1.55 MB | download |
| Leaflet for DTT VOIP-GSM 16M64S gateway | 06-08-2013 | Documentation (pdf) | 0.87 MB | download |
| Windows update for DTT VOIP2GSM gateways | 06-08-2013 | Driver (rar) | 2.65 MB | download |
| IMEI changing in DTT GSM VoIP gateways | 06-08-2013 | Documentation (pdf) | 1.05 MB | download |
| Utilities for DTT VOIP-GSM gateways | 06-08-2013 | Software (rar) | 1.69 MB | download |
To access this product file, get partner STE status
