DTT GSM2VOIP 16M80S: GSM-VoIP 16 channel gateway with embeded 64 Sim server
Hot offer. The duration of action is limited
VOIP2GSM 16M80S
|
Main characteristics
|
|||||||||||||||||||||||||||||||||||||||||||
1U 19” Rack mounted 16 GSM channels with 64 SIM embeded server
Special features
- Scanning of BCCH channel by cyclic or static
- IMEI changing
- Image moving from point to point (pair of IMEI and SIM card) Available only with external Sim server DTT use and several remote gateways DTT as part of the system
VOIP
- Signaling: SIP – RFC 3261, H323
- Number of voice channels:16 Channels
- simultaneously
- Codec’s: G.711A,Mu G723 G.726 G.726 G.729
- Acting as a SIP Server.
- SIP Account management + Authentication
Interfaces
- WAN, LAN
- GSM 4 Channel with 1 External Antenna SMA
- type with 3.6 meter length
Call Management Features
| Call Routing | Block all incoming calls on a port (GSM)
All incoming calls receive a dial tone, then the user may dial the destination number using DTMF, the calls are routed according to user defined prefix groups. Incoming calls are routed to destination number automatically, options: 1. Fixed destination number for each incoming port. 2. Destination number according to user-defined list, selection cyclic. 3. Destination number according to user-defined list, selection according to priority. 4. Source routing-transfer of call accordingly to original source IP or number |
| Routing Groups | The user can define multi-prefix options for each port.
The user can dedicate a ports utilizing the same prefix - the system will route the call according to free port selection. The user can define default port/s that will be used if no other port prefix is defined. |
| Internal Users Database | Each user has capabilities definitions that define the unit handling of his calls. |
| CDR | 100 CDR’s to export to external file- Access, XML, CMV. |
| DISA | Holds list of extensions ( VOIP ) for automatic direct routing of incoming call – optional. |
| Call Back | Available - Option |
| Tone Definitions | Home feeling, the user can choose its own country call progress tones definitions. |
| SIP Client | Support of register and route calls to other SIP servers (can connect up to 10 V2G together, asterisk, other SIP providers). |
| SMS | Send & Receive SMS using e-mail. ,SMS Server (optional) |
| Profiles | Easy setting of parameters for a group of SIMs |
| Sim Balance | Manual or automatic check by options
1. Call minutes 2. Number of calls 3. After first Call |
| Sim Recharge | Manual or automatic check by options
1. Minimum balance or below 2. Call minutes 3. Number of calls 4. After first call |
| Blocked Sim | When sim calls are unsuccessful, the sim card is blocked for convenience |
| Human Behavior |
|
| Sim swapping | By time or call duration |
| Test Call | Auto schedule for random incoming test calls by options
1. Length of call 2. Frequency 3. Randomly |
| Test SMS | Auto schedule for random incoming test SMS by options
1. Length of call 2. Frequency 3. Randomly |
| BCCH | Random Rotation between base stations |
| IMEI | IMEI changing. IMEI and SIM binding and virtual moving of a pare(image) |
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| API for DTT VOIP-GSM ver. 7.2B10 | 10-15-2014 | Software (zip) | 8.70 MB |  download |
| API for DTT VOIP-GSM gateways ver. 7.1B48_26 | 10-15-2014 | Software (exe) | 9.34 MB | download |
| API for DTT VOIP-GSM gateways (7.1B48) | 10-15-2014 | Software (rar) | 9.02 MB | download |
| API for DTT VOIP-GSM gateways (7.1B47_22) | 10-15-2014 | Software (rar) | 8.95 MB | download |
| SMS VOIP gateway. Installation | 11-11-2013 | Documentation (pdf) | 0.16 MB | download |
| User manual for DTT VOIP-GSM 8-16-24 gateways | 08-01-2018 | Documentation (pdf) | 1.55 MB | download |
| User manual for DTT 8-16-24 channel gateways (Version 5.36z) | 08-01-2018 | Documentation (pdf) | 1.44 MB | download |
| Leaflet for DTT VOIP-GSM 16M64S gateway | 06-08-2013 | Documentation (pdf) | 0.87 MB | download |
| Windows update for DTT VOIP2GSM gateways | 06-08-2013 | Driver (rar) | 2.65 MB | download |
| IMEI changing in DTT GSM VoIP gateways | 06-08-2013 | Documentation (pdf) | 1.05 MB | download |
| Utilities for DTT VOIP-GSM gateways | 06-08-2013 | Software (rar) | 1.69 MB | download |
To access this product file, get partner STE status

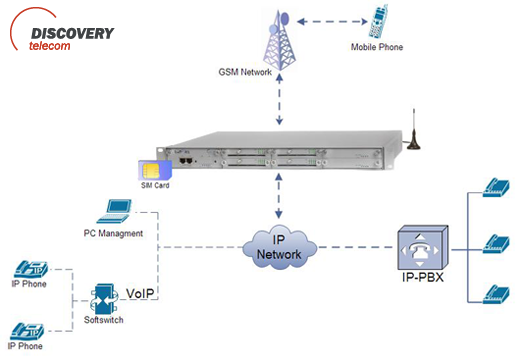

16 simultaneous calls to Voip, Cellular, with a direct LAN connection to IP-PBX or TCP/IP.
This unit can be intermixed with any 4ch of the cellular options, i.e. 4 channels GSM / 4 channels CDMA
A SIP Client/Server, that can work stand-alone or in a SIM Server environment
Optional 64 sims (mini sim server)
Timetable for sim swapping and unique human behaviour
Hot swappable sim cards
Solution for: A Corporate heavy duty solution for mass calling, origination / termination / call centres / operators
